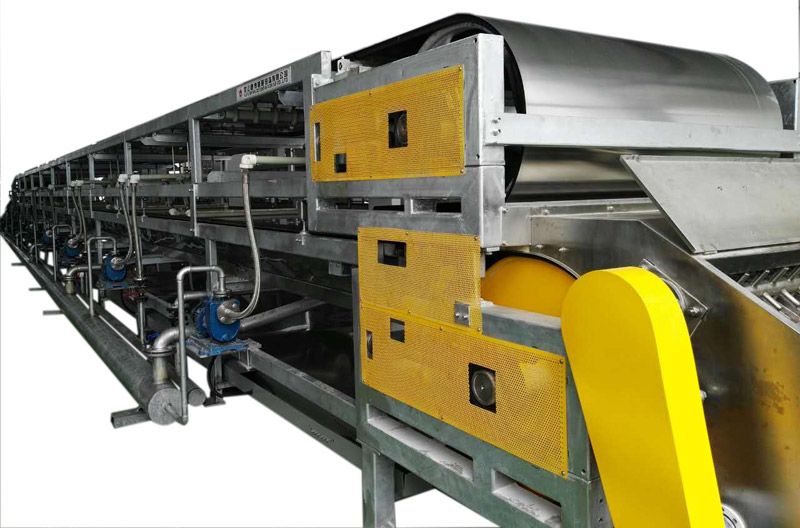

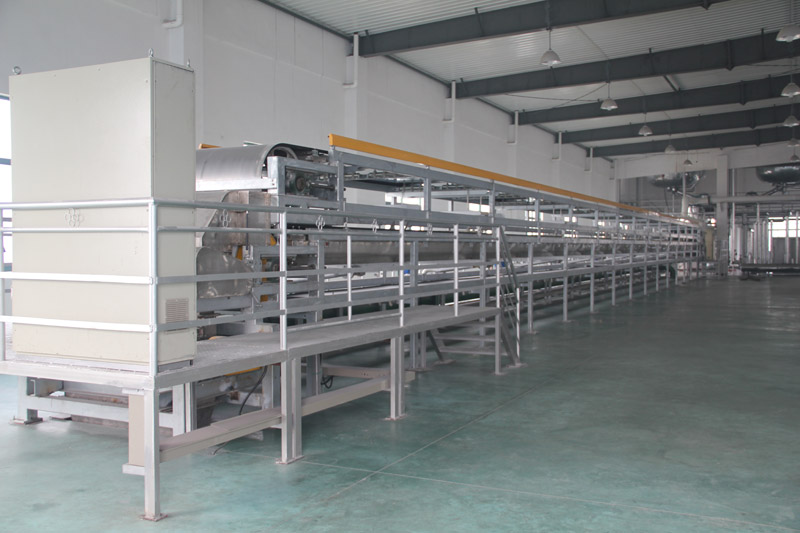

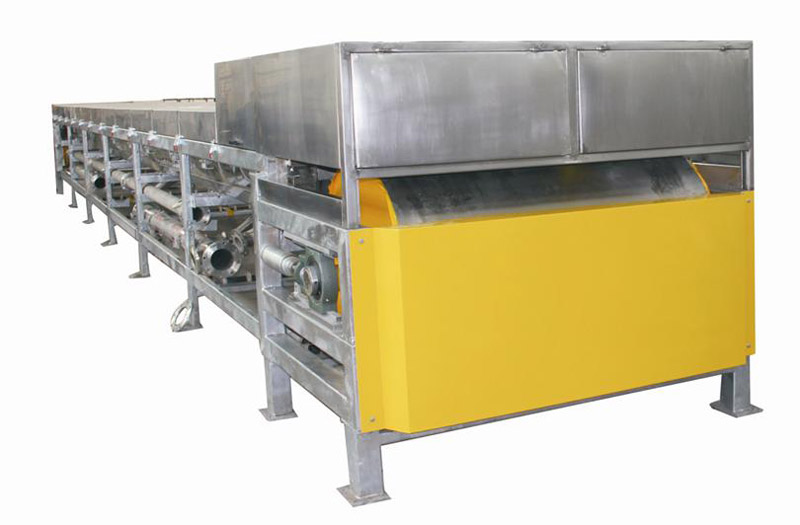

DDF series Chemical Belt Faker
Working principle£º
DDF Series double cooling belt flaker and DSF series single cooing belt flaker are main composed of overflow groove ,
stainless steel belt and crusher device. The melted material from the upstream process ,will be paved onto the belt up
surface uniformly through overflow groove ,and form a uniform thin flaker,and forwarder with the belt and cooled by
cooling water sprayed from rear surface of belt . The material will be solidified and will be crushed to be irregular chips
by the crusher .
Application fields
¡ô Polyester resin and other resin industry
¡ô Raw material of powder coating industry
¡ô Rubber industry
¡ô Food industry
¡ô Asphalt industry
¡ô Sulfur industry
¡ô Artificial marble industry
¡ô Other cooling & convey industry
Main Features
¡ô High environmental protection : material is complete separated with water , chill water can be cycle used, powder
dust free and no gaseous emission
¡ô High production efficiency : can process production .
¡ô High thermal conductivity ability . Can cool the melted material to solidify & mold faster , improve the product quality .
¡ô Wide applied range in product temperature & viscosity .
¡ô Good quality & long life . Less maintenance . - Previous£ºNothing
