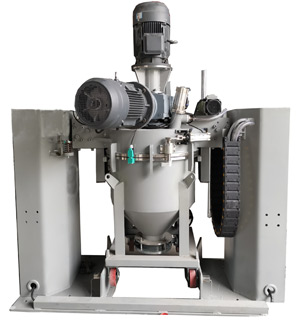

DCM Series Container Mixer
Working principle
DCM system container mixer , adopt the most advanced design idea , after long-term practice used in the market , it is a matured product. The premix is charged to the mixing container, clamped and locked with the mixing head by air cylinder ,tilting motor drive the container with material to the top and start mixing automatically , the container will come down to the initial position after finish mixing automatically.
Application fields
¡ô Powder coatings industry
¡ô Rubber industry
¡ô Food industry
¡ô Other industry required material mixing.
Main Features
¡ô Multi container recycled used , high production efficiency .
¡ô Multi container recycled used , easy for color change
¡ô Multi PLC program , may choose suitable program for
| Model | Volume£¨Liter£© | Main Blade Motor (kw) | Minor Blade Motor(kw) | Tilt Motor (kw) | Control Type | Total Power(kw) |
| DCM-150 | 150 | 11.0 | - | 0.55 | PLC | 12 |
| DCM-300 | 300 | 18.5 | - | 0.75 | PLC | 19.5 |
| DCM-600 | 600 | 18.5 | 5.5 | 1.1 | PLC | 25.0 |
| DCM-1000 | 1000 | 30.0 | 7.5 | 1.5 | PLC | 39.0 |
| DCM-1500 | 1500 | 37.0 | 11.0 | 2.2 | PLC | 60.0 |
| DCM-2000 | 2000 | 45.0 | 15.0 | 3.0 | PLC | 63.0 |
